What is this vent?

Scheduled Pinned Locked Moved General Discussion
6 Posts 4 Posters 50 Views
  • Oldest to Newest
  • Newest to Oldest
  • Most Votes
Reply
  • Reply as topic
Log in to reply
This topic has been deleted. Only users with topic management privileges can see it.
  • 89th8 Offline
    89th8 Offline
    89th
    wrote on last edited by 89th
    #1

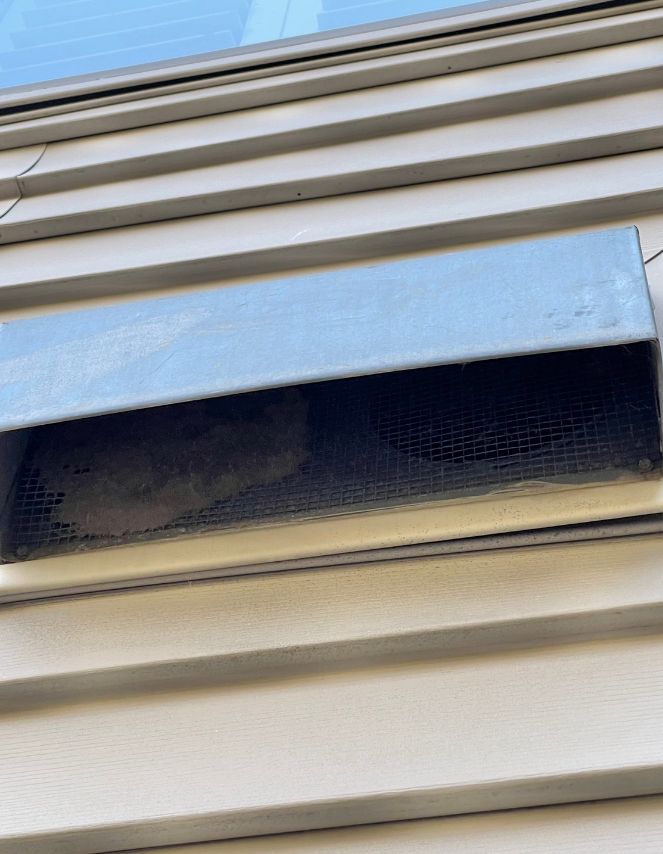

    This is on the back of my house above the basement doors, I obviously presume it’s an intake/output vent system of some sort (the left circle vent is clogged, I presume from years of collecting dust). Anyone know?

    There are two circle vents under the aluminum hood.

    Inside the house this vent aligns just above our basement ceiling.



    RenaudaR 1 Reply Last reply
    • 89th8 89th

      This is on the back of my house above the basement doors, I obviously presume it’s an intake/output vent system of some sort (the left circle vent is clogged, I presume from years of collecting dust). Anyone know?

      There are two circle vents under the aluminum hood.

      Inside the house this vent aligns just above our basement ceiling.



      RenaudaR Offline
      RenaudaR Offline
      Renauda
      wrote on last edited by Renauda
      #2

      @89th

      My guess would be bathroom fan or clothes dryer outtakes. Have never seen a configuration like that on a house. What do have in your basement that requires outdoor venting?

      Elbows up!

      1 Reply Last reply
      • MikM Offline
        MikM Offline
        Mik
        wrote on last edited by
        #3

        With the fluff on it, it's likely the dryer vent. It could be water heater or furnace too. If they are gas they require venting. What is on the first floor? Where does your range hood, if you have one, vent to?

        “I am fond of pigs. Dogs look up to us. Cats look down on us. Pigs treat us as equals.” ~Winston S. Churchill

        1 Reply Last reply
        • George KG Offline
          George KG Offline
          George K
          wrote on last edited by
          #4

          What @Renauda said. We had a similar hide-away for wasps, etc at the Cheddarshack. It was right by the laundry room.

          "Now look here, you Baltic gas passer... " - Mik, 6/14/08

          The saying, "Lite is just one damn thing after another," is a gross understatement. The damn things overlap.

          1 Reply Last reply
          • 89th8 Offline
            89th8 Offline
            89th
            wrote on last edited by
            #5

            Mysterie solved.

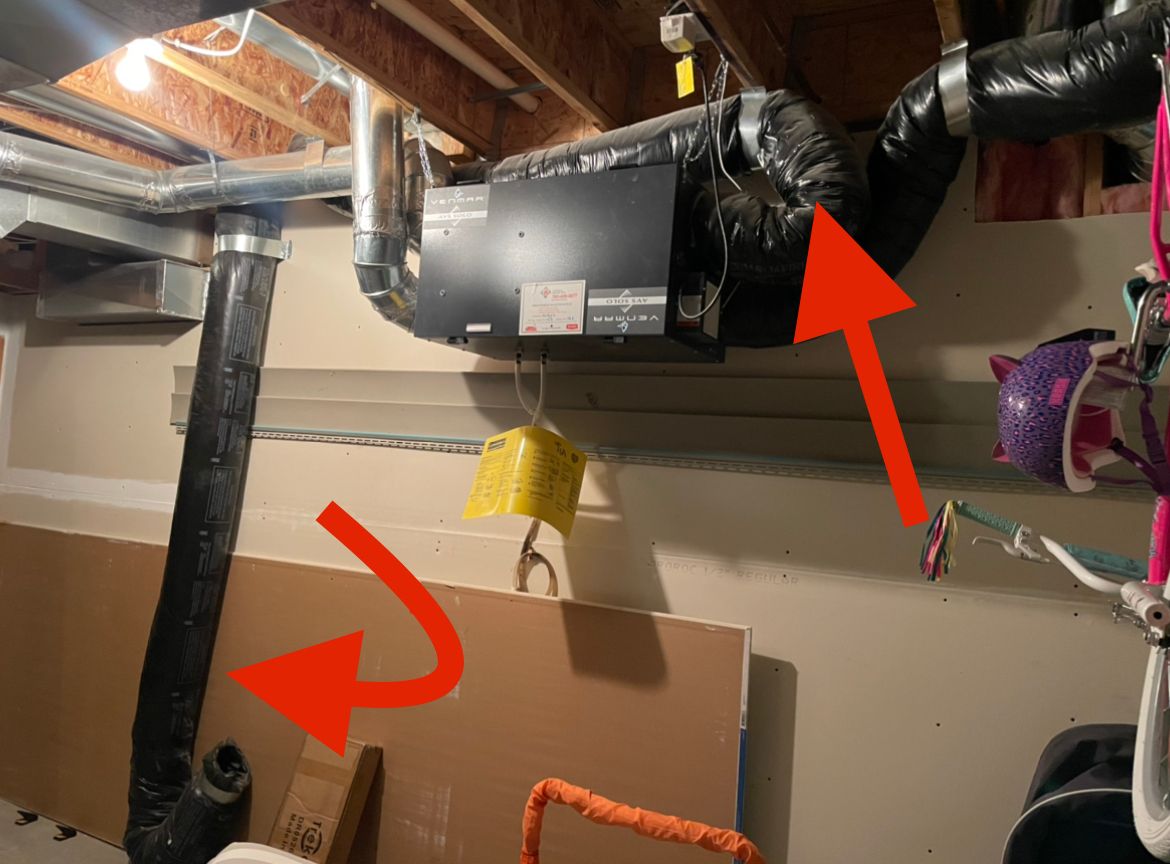

            The right circle leads to an open vent in the utility room, which is a "combustion air duct". Basically a passive way to bring air into the house to replace air that is lost (via furnace, bathroom vents, etc).

            The left circle (that I just cleaned off, probably hasn't been cleaned since the house was built in 2005), is the cold air intake for the Heat Recovery Ventilation (HRV) system. The HRV is used when the heat is on to bring in fresh air during the winter, mix it with the humid/stale air from the house. The "output" duct for the HRV was on the other side of the house, so I didn't think this duct would also be involved but I was able to trace the duct enough to see.

            1 Reply Last reply
            • 89th8 Offline
              89th8 Offline
              89th
              wrote on last edited by
              #6
